Refractory Products--Ceramic Fiber Blanket

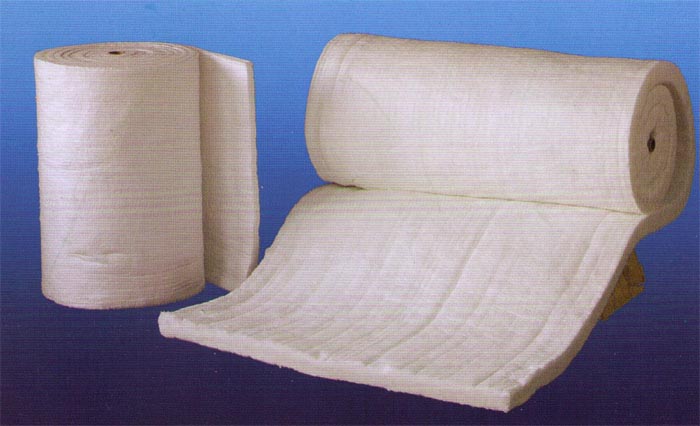

Ceramic Fiber Blanket

ceramic fiber blanket

Product Characteristic
1.Excellent chemical stability
2.Excellent thermal stability
3.Excellent tensile strength
4.Low thermal conductivity
5.Low heat storage
Application Range:
1.The material of wall lining and back lining of industrial furnace and the sealing and insulation material of expanded gaps of furnace wall,furnace door,furnace top lid,etc.
2.Insulating material of high temperature.
3.Materials to produce module and foled module.


Type
1050
1260
1440
Code
OR-112
OR-212
OR-312
OR-512
Shrinkage on heating
950℃ ╳24h≤-3
1000℃ ╳24h≤-3
1100℃ ╳24h≤-3
1350℃ ╳24h≤-3
Thermal conductivity(W/m.k)(128kg/m3)
200℃
0.045-0.060
0.045-0.060
0.052-0.070
400℃
0.085-0.110
0.085-0.110
0.095-0.120
600℃
0.152-0.20
0.152-0.20
0.164-0.210
Density strength(Kg/m3)
96/128
Tensile strength(MPa)
≥0.04
Shot content(MPa)
≤15
pecification(mm)
3600/7200/15000╳610/1220╳10/20/25/30/40/50
Al2O3(%)
≥44
≥45
38-40
ZrO2(%)
--
--
15-17
Al2O3+SiO2(%)
≥96
≥97
+ZrO2≥99
Package
Carton /Woven Bag
Quality control system
ISO9001-2000,ISO14001-1996
